الأسرّة ذات المائل الرقمية

Specifications

UNIT

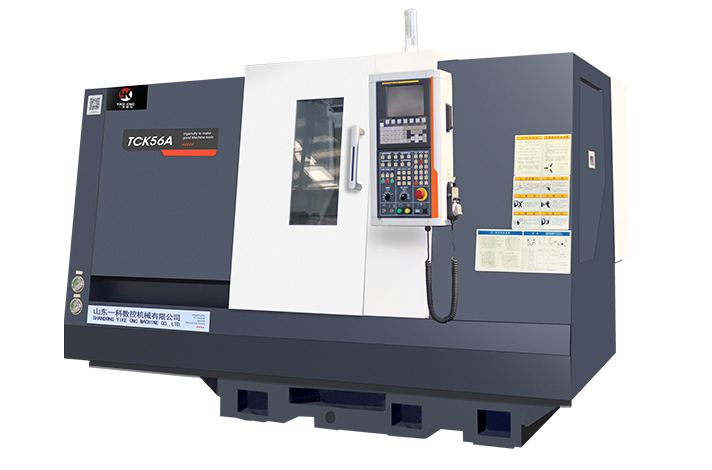

TCK56A

TCK66A

Max.swing dia. over bed

mm

560

660

Max.swing dia. over slide

mm

300

400

Max.work piece length

mm

500/950

750

Max. bar capacity

mm

50

75

Max.processing diameter (plate)

mm

360

500

Spindle nose

GB59001

A2-6

A2-8

spindle bore

φ/mm

65

85

Spindle speed

r/min

50-3500

0-2800

Spindle shift mode

Stepless

Stepless

Spindle motor power

KW

11

11/15

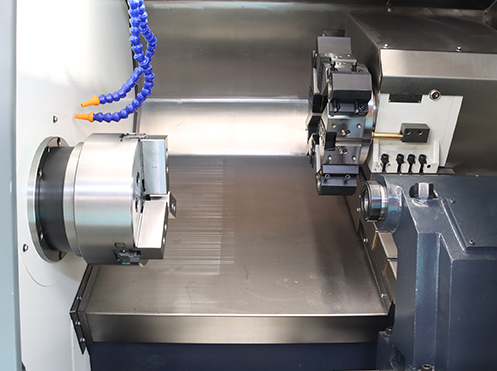

Chuck type

Hydraulic chuck

Hydraulic chuck

Chuck size

lnch

8

10

X axis rapid traverse

m/min

24

24

Z axis rapid traverse

m/min

24

24

X axis travel

mm

200

260

Z axis travel

mm

550/1050

800

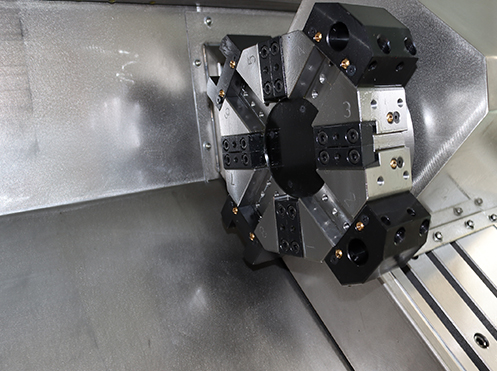

Tool post type

Horizontal 8/12 station

Horizontal 8/12 station

Tool shank size

mm

25X25/Ø32

25X25/Ø32

Tail stock type

Hydraulic

Hydraulic

Tail stock quill dia

φ/mm

74

100

Tail stock quill travel

mm

450

700

Tail stock quill taper

MT5#

MT5#
